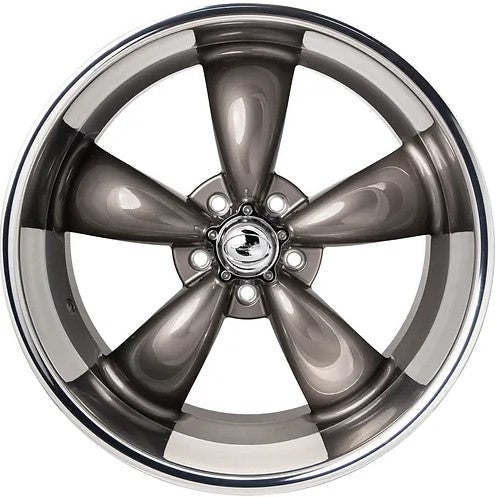

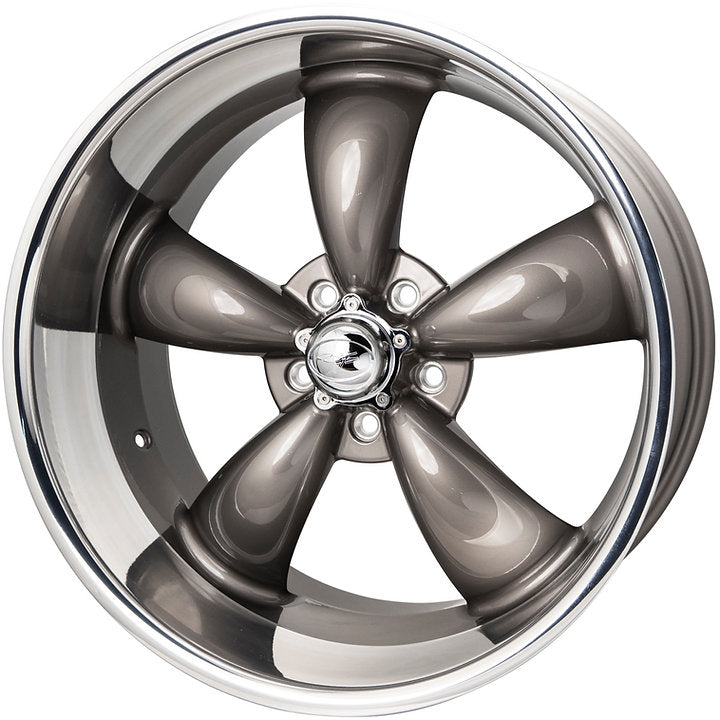

COYS C-5 FORGED 6061 Gun Metal Polished Lip Wheel

C-5 FORGED

The C-5 started it all and now it has grown up. Already the most beautiful and well designed Hot Rod and Muscle car wheels ever, the C-5 is being redesigned for improved strength, weight and functionality.  The new one-piece T6061 Forged C-5 wheel will offer more bolt patterns, more fitment capabilities and quality that is unmatched!

AVAILABLE IN THE FOLLOWING SIZES

• 20X8.5
• 5x4.50* / 5X4.75 / 5X5.0 / 5x5.50* BOLT PATTERN
• GUN METAL WITH POLISHED MIRROR FINISH LIP
• 5.25 INCH BACK SPACE
• 78.1MM CENTER BORE (5x4.50 & 5x4.75 BOLT PATTERNS)
• 90MM CENTER BORE (5x5 & 5x5.50 BOLT PATTERNS)
• 2,000LBS LOAD RATING (350LBS STRONGER LOAD RATING THEN 1,650 CAST VERSION)

• 20X10
• 5x4.50* / 5X4.75 / 5X5.0 / 5x5.50* BOLT PATTERN
• GUN METAL WITH POLISHED MIRROR FINISH LIP
• 5.50" INCH BACK SPACE
• 78.1MM CENTER BORE (5x4.50 & 5x4.75 BOLT PATTERNS)
• 90MM CENTER BORE (5x5 & 5x5.50 BOLT PATTERNS)
• 2,000LBS LOAD RATING (350LBS STRONGER LOAD RATING THEN 1,650 CAST VERSION)

* Bolt Patterns Are Custom Drilled To Order As There Demand is not as high
